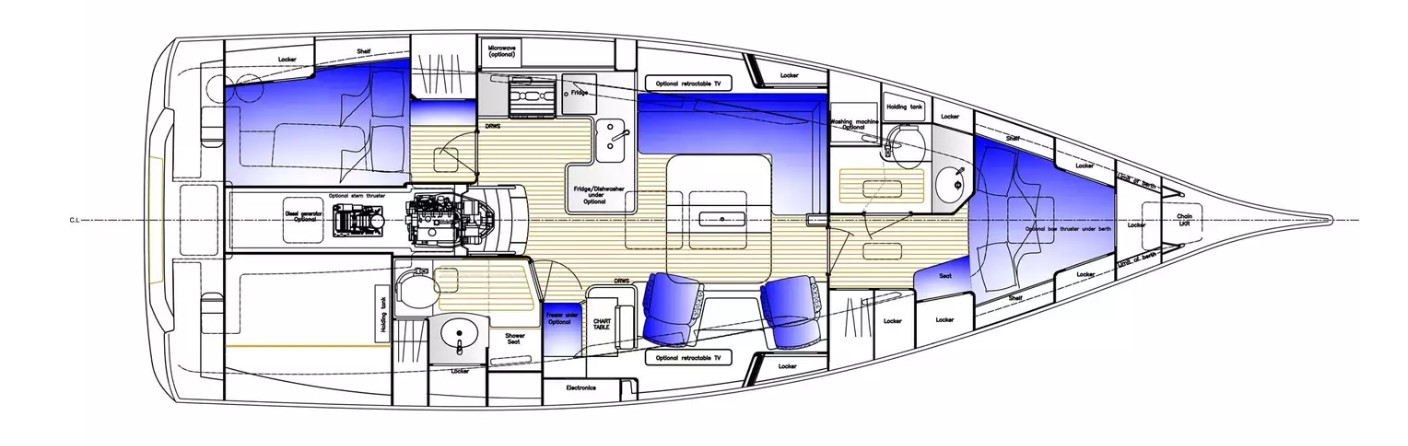

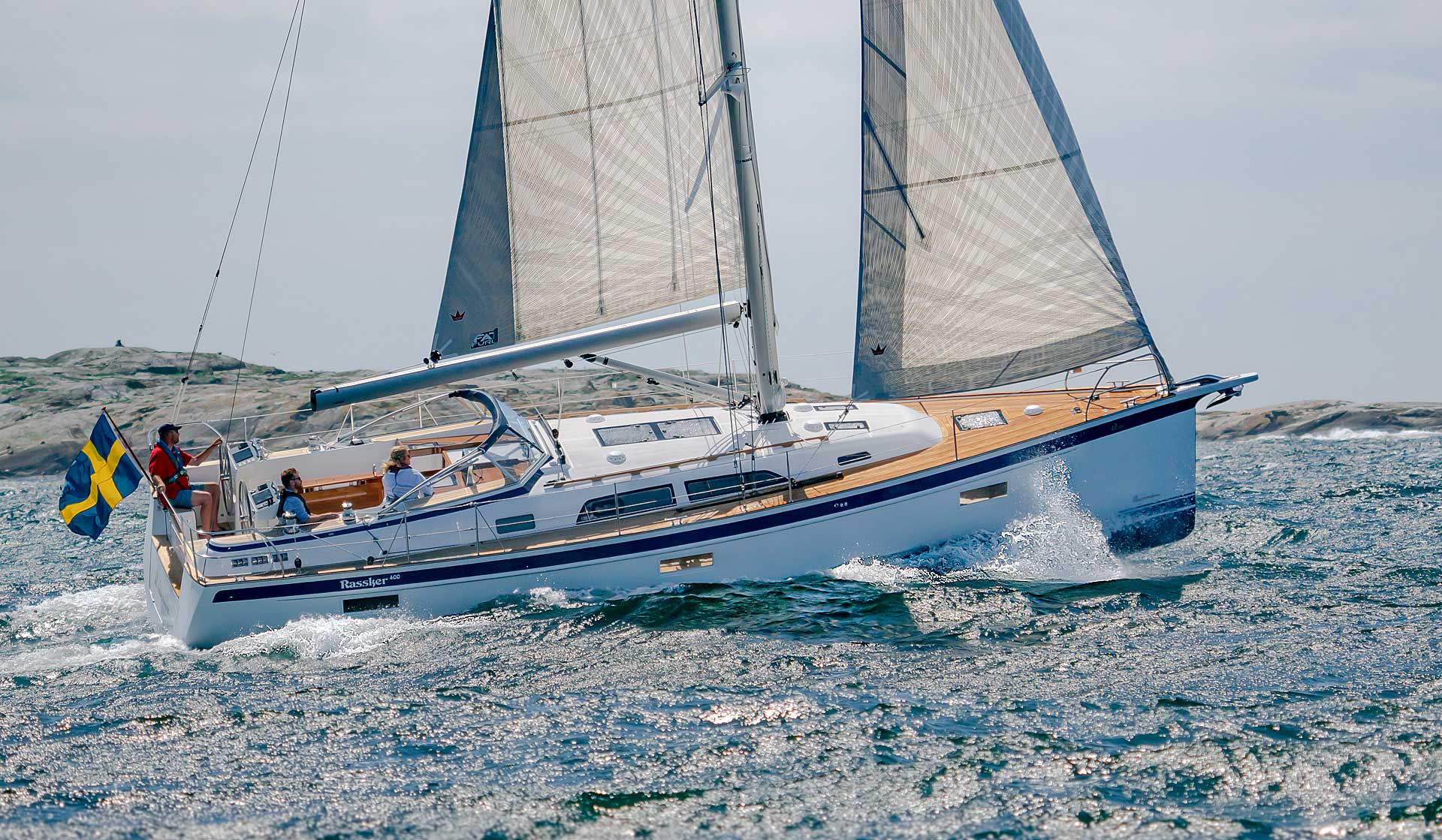

The new Hallberg-Rassy 400 is an aft cockpit boat with twin helms, a modern and efficient hull shape with twin rudders and an easy to handle rig. The interior offers the option of one or two aft cabins, one or two heads, classic mahogany or bright European oak interior. After the center cockpit 40C, the aft cockpit 400 is the second new 40 footer from Hallberg-Rassy in a short time.
HALLBERG-RASSY
HALLBERG-RASSY 400
THE LATEST AFT COCKPIT HALLBERG-RASSY
Main Technical data
___________
E category
A — Unlimited ocean voyages
Hull length
12.30 m / 40’ 4”
Maximum length
13.06 m / 42’ 10’’
Waterline at rest
11.74 m / 38’ 6’’
Beam
4.18 m / 13’ 8 1/2”
Draught, empty standard boat *
1.92 m / 6’ 4”
Displacement, empty standard boat
11 t / 24 250 lbs
Keel weight
3.65 t / 8 050 lbs
Keel type
lead on deep bilge
* Also available as a 25 cm/10» more shallow draught version
Sail area with genoajib, standard boat
90.1 m² / 970 ft²
Sail area with genoajib, optimized sail area
96.6 m² / 1 040 ft²
Air draft, ex Windex
19.75 m / 64’ 10’’
Engine
Volvo Penta D2-60
Power at crank shaft
44 kW / 60 HP
Diesel tank
400 l / 106 US gallon
Fresh water tanks
520 l / 137 US gallon
Transport height, including windshield
4.33 m / 14′ 3»
Transport hieght, without windshield, pulpit, pushpit, steering wheels, pedestals
3.99 m / 13′ 1″
